Factory Price Bottle Mineral Water Machine Bottle Water Manufacturing Machinery Bottled Drinking Water Production Line

Small Bottle Water Filling Line

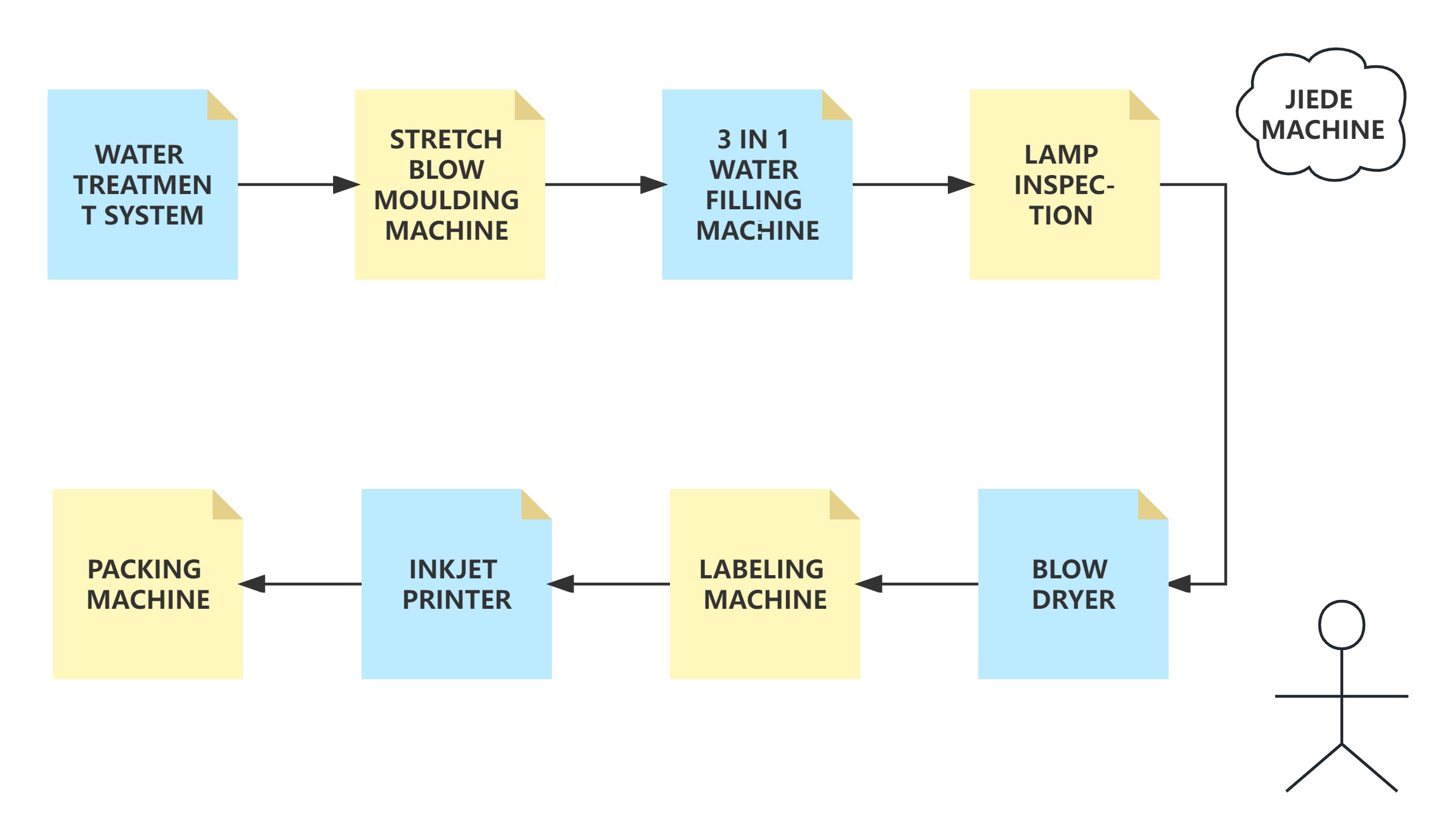

The complete bottle water filling line mainly includes 4 machines:
1. Washing filling capping 3 in 1 machine To washing the plastic bottle,filling drinking water into bottle ,like pure water, mineral water,and sealing bottles with caps
2. Blow dryer To make sure the bottle surface is dry before labeling
3. Automatic adhesive/hot melt labeling machine To sleeve the labels on the bottles ,and shrink with gas.
4.  Automatic shrink packing machine To pack 12 bottles in one package

Product Description

Washing Filling Capping 3 in 1 Machine

-The air channel is directly connected to the three-in-one machine, and the bottle is transmitted to the three-in-one filling machine by the air channel star wheel.

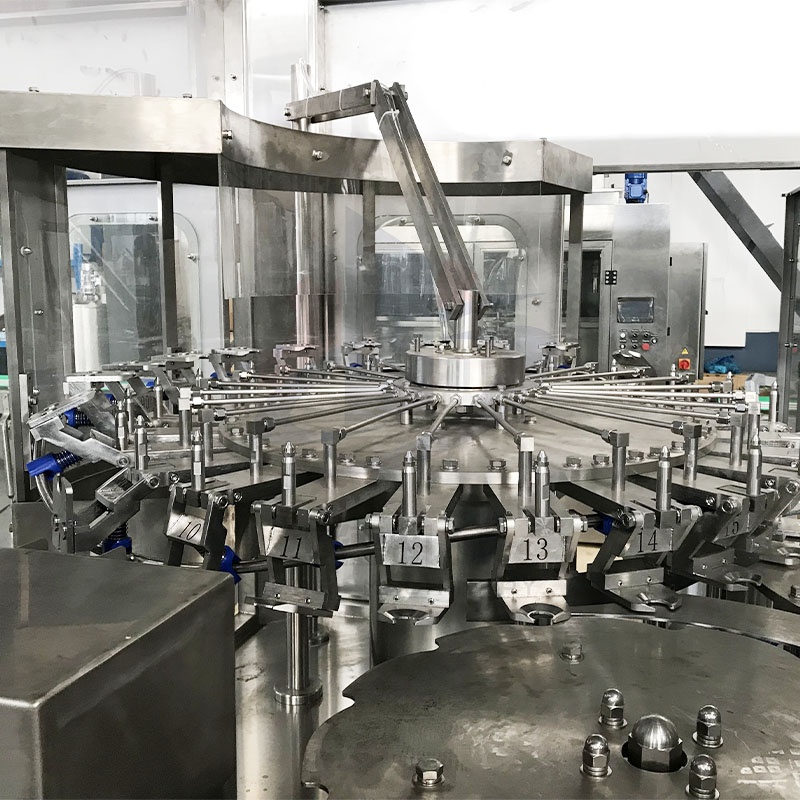

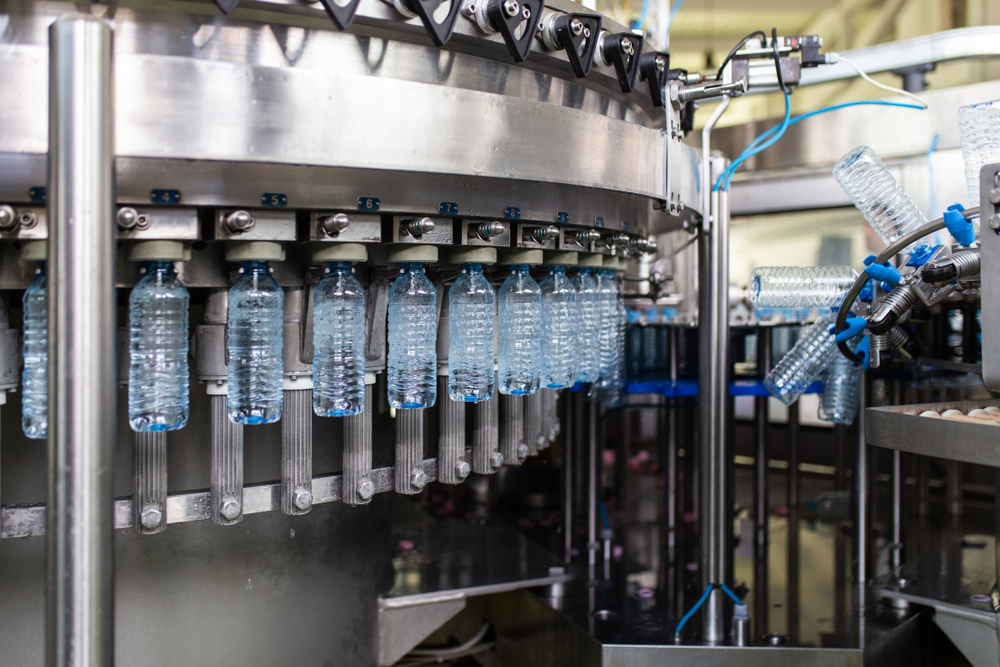

Washing Part

-The rotary plate of the bottle washer is equipped with a bottle holder, and the bottle holder is flipped 180 along a guide rail to make the bottle holder go down into the bottle punch machine.

-In a specific area of the bottle flushing machine, a special nozzle emits flush bottle water to flush the inner wall of the bottle. After washing, draining, the bottle is clamped and held along the guide rail Flip 180 to turn the mouth up.

-The washed bottles are exported by the bottle washer and transferred to the filling machine.

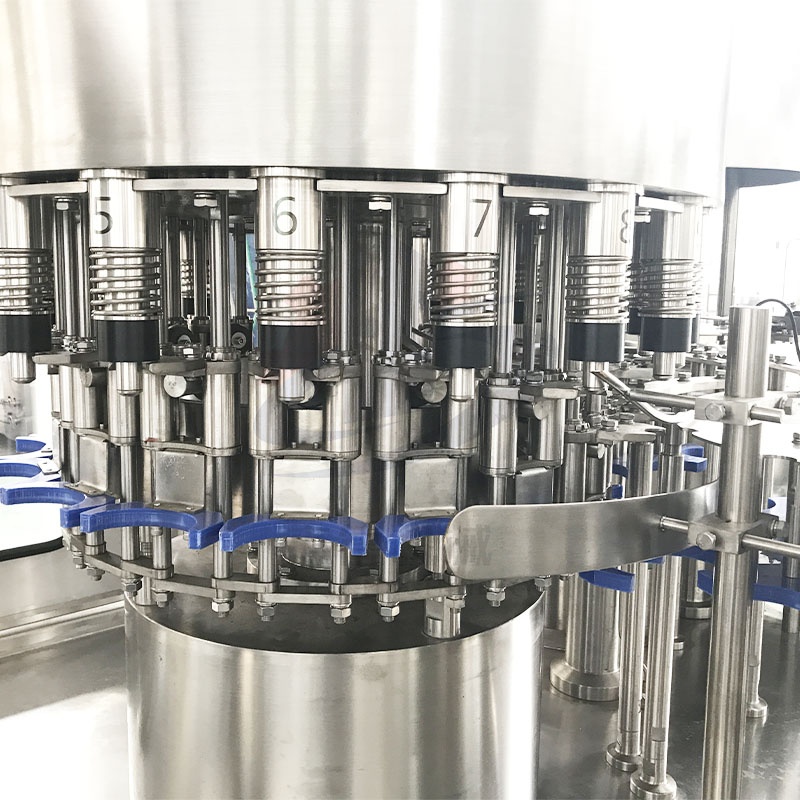

Filling Part

-The bottle entering the filling machine is held by the bottleneck tray. The filling valve drops and rises under the action of the cam through the valve lifting mechanism.

-The filling is filled by gravity method. The filling valve drops to contact the bottle mouth and opens the filling process.

-After the filling, the filling valve rises and leaves the bottle mouth, and the bottle enters the capping machine through the bottleneck transition wheel.

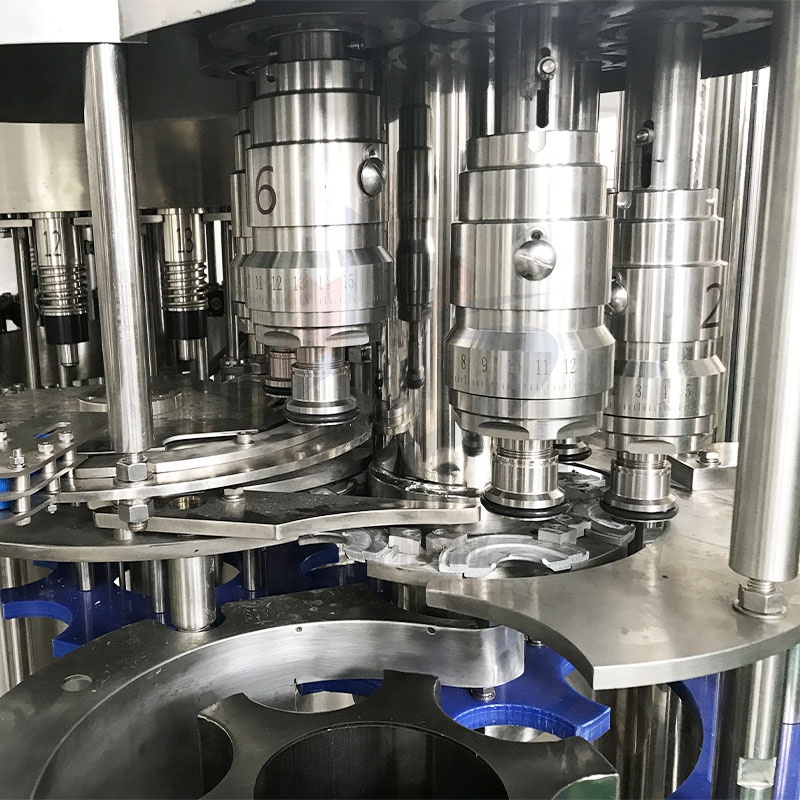

Capping Part

-The single machine with the highest accuracy in the three-in-one machine, the stop knife on the rotary cover machine stuck the bottleneck part, keep the bottle upright and prevent rotation.

-The cap head keeps rotates and rotates on the cap machine, and realizes the cover, cover, spin cover and cover off under the action of the cam to complete the whole sealing process.

-The finished bottle is transmitted from the capping machine to the delivery chain through the delivery wheel, and the three bottle is transmitted by the delivery chain.

Technical Parameters

Mold	CGF8-8-3	CGF14-12-5	CGF16-16-6	CGF18-18-6	CGF24-24-8	CGF32-32-10	CGF40-40-12	CGF50-50-15	CGF60-60-15
Production capacity(B/H)	2000-3000	3000-3500	3500-5000	5000-7000	7000-12000	12000-15000	15000-20000	20000-24000	24000-30000
Suitable bottle shape	Circular or Square
Bottle diameter(mm)	Φ50-Φ95
Washing	Aseptic Water
Total power	2.5	3	3.5	4	5.5	7.5	11	15	20
Weight (kg)	1800	2200	2800	3000	4500	6000	9000	15000	18000
Overall dimensions(mm)	1800*1200	2050*1550	2400*1750	2550*1850	3000*2150	4200*2700	4700*3200	6500*3350	7200*3650

Related Equipments

Hot products

Our Company

After-sales Service

FAQ

JIEDE

Presenting the Manufacturing facility Cost Container Mineral Sprinkle Device Container Sprinkle Production Equipment Bottled Consuming Sprinkle Manufacturing Collection, a suitable service for anybody browsing towards begin distinct sprinkle production bottled collection. This high-grade equipment is developed towards provide costs high top premium bottled consuming sprinkle at an inexpensive expense.

In the precise center of this particular Jiede Manufacturing facility Cost Container Mineral Sprinkle Device Container Sprinkle Production Equipment Bottled Consuming Sprinkle Manufacturing Collection is a state-of water-the-art body that assurances sprinkle is cleansed risk-free for use. This sprinkle therapy body brings a opposite filter pre-treatment UV sterilizer, filter. Utilizing this particular progressed filtration, you will ensure that the mineral water products are cool without pollutants.

The Manufacturing facility Cost Container Mineral Sprinkle Device Container Sprinkle Production Equipment Bottled Consuming Sprinkle Manufacturing Collection is developed along with a multi-head compartment body that makes dental filling each compartment legitimate quick. The stuffing procedure is extremely thoroughly calibrated towards guarantee each container has plenty of the appropriate variety of, all of the while preserving the beautiful high top premium concerning the sprinkle. This effective body decreases the possibility of splilling waste, that makes it an inexpensive financial assets.

Among a number of much a lot better factors for possessing the Jiede Manufacturing facility Cost Container Mineral Sprinkle Device Container Sprinkle Production Equipment Bottled Consuming Sprinkle Manufacturing Collection is its own versatility. It might handle various compartment forms, coming from small 350 ml containers towards one-large litre. Which implies it is feasible towards adjust towards the ever-changing requirements of the clients.

The Jiede Manufacturing facility Cost Container Mineral Sprinkle Device Container Sprinkle Production Equipment Bottled Consuming Sprinkle Manufacturing Collection is created along with performance resilience in your move. It is built coming from top quality products which will endure regular utilize guaranteeing reliability resilience. The item is easy to use, that makes it simple towards operate, cleanse, preserve.

The Jiede Manufacturing facility Cost Container Mineral Sprinkle Device Container Sprinkle Production Equipment Bottled Consuming Sprinkle Manufacturing Collection is beneficial thinking about. If you are searching for a fantastic devices for your sprinkle in containers assembly line. It provides consuming high top premium costs sprinkle at an inexpensive cost, making it a fantastic financial assets for any type of company. Together with its own progressed sprinkle therapy body, multi-head compartment dental filling body, remarkable building, you may be specific that the Jiede Mineral fluid gadget will help you provide sprinkle items which your clients will certainly such as.
