Presenting, the A to Z Bottle Filling Machinery Bottle Water Manufacturing Machinery Bottled Drinking Water Production Line by Jiede! This small-scale container filling line is the perfect solution for whoever looking for a cost-effective and efficient way to fill containers with water in their company.



The unit is user-friendly and simple to use, which makes it ideal for smaller businesses that do not have engineer or professional. It offers a compact design, rendering   it be easy to match to any workplace, even in tight areas.

It was manufactured with top-notch materials that ensure durability. Its elements are manufactured from metal, a well-known item for its resistance to rust and corrosion. This means the product can last for many years despite regular usage.



It has a capability to make as high as 2000 containers full each hour, based on the size of the container. It's perfect for tiny and medium-sized organizations that need to fill containers with water quickly and effortlessly. The unit was made to fill containers with water however it can also be used for almost any other fluids, such as soft drink and juice.



It makes use of higher level technology that ensures that the containers are filled accurately and evenly. It features a system that immediately prevents the filling method when the container is completely full, preventing overflow or spillage. This helps to make sure that there is no waste, and all sorts of the containers are filled to the brim.


The unit was made to be low-maintenance, reducing the necessity for regular repairs and replacements. You can easily clean and sanitize it which makes it ideal for used in places where hygiene is a top problem.


A to Z Bottle Filling Machinery Bottle Water Manufacturing Machinery Bottled Drinking Water Production Line details

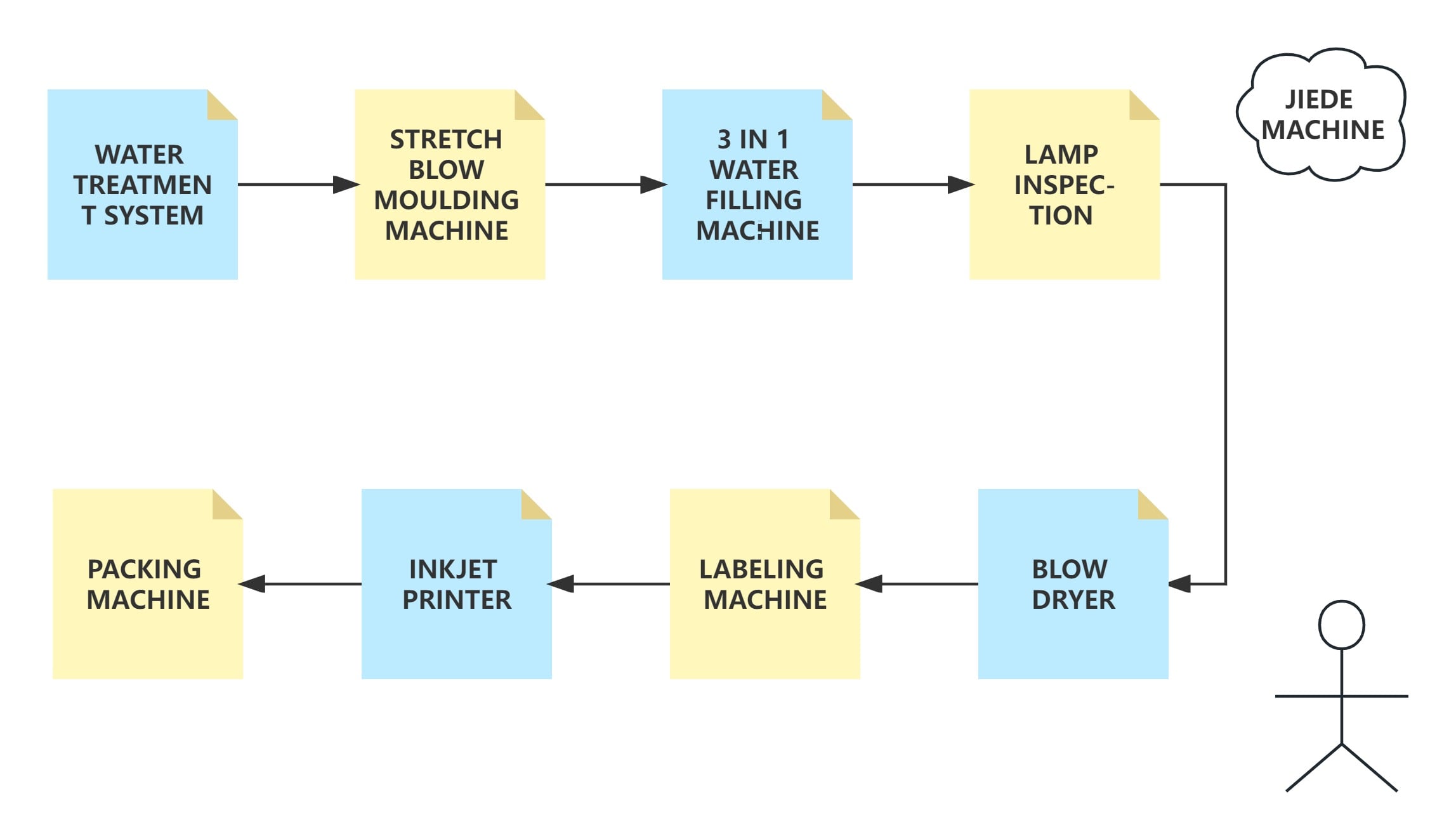

Small Bottle Water Filling Line
The complete bottle water filling line mainly includes 4 machines:
1. Washing filling capping 3 in 1 machine To washing the plastic bottle,filling drinking water into bottle ,like pure water, mineral water,and sealing bottles with caps
2. Blow dryer To make sure the bottle surface is dry before labeling
3. Automatic adhesive/hot melt labeling machine To sleeve the labels on the bottles ,and shrink with gas.
4.  Automatic shrink packing machine To pack 12 bottles in one package

A to Z Bottle Filling Machinery Bottle Water Manufacturing Machinery Bottled Drinking Water Production Line details

Product Description

A to Z Bottle Filling Machinery Bottle Water Manufacturing Machinery Bottled Drinking Water Production Line manufacture

Washing Filling Capping 3 in 1 Machine
-The air channel is directly connected to the three-in-one machine, and the bottle is transmitted to the three-in-one filling machine by the air channel star wheel.

A to Z Bottle Filling Machinery Bottle Water Manufacturing Machinery Bottled Drinking Water Production Line factory

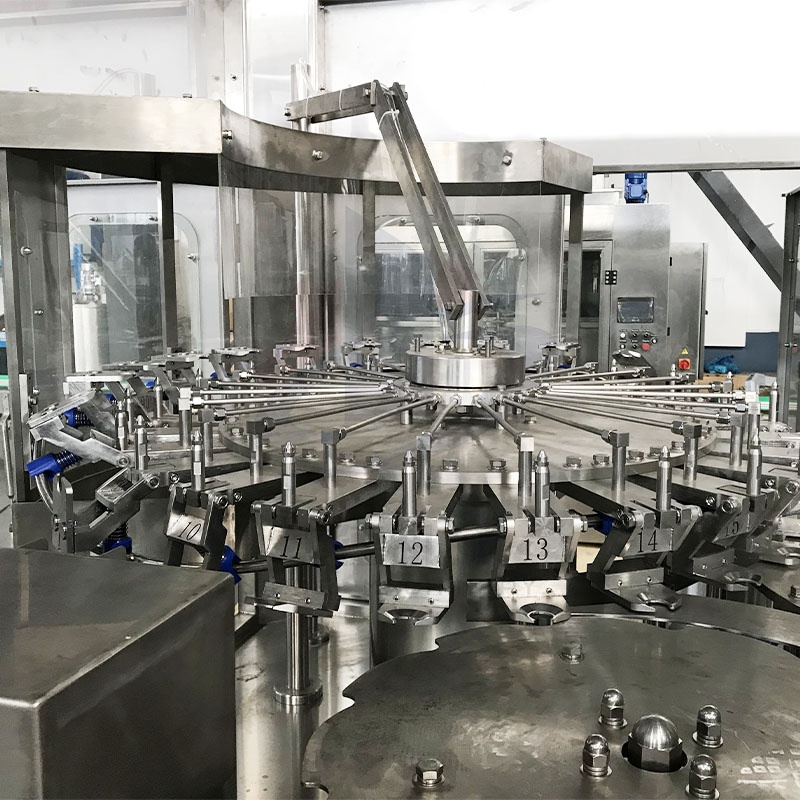

Washing Part
-The rotary plate of the bottle washer is equipped with a bottle holder, and the bottle holder is flipped 180 along a guide rail to make the bottle holder go down into the bottle punch machine.
-In a specific area of the bottle flushing machine, a special nozzle emits flush bottle water to flush the inner wall of the bottle. After washing, draining, the bottle is clamped and held along the guide rail Flip 180 to turn the mouth up.
-The washed bottles are exported by the bottle washer and transferred to the filling machine.

A to Z Bottle Filling Machinery Bottle Water Manufacturing Machinery Bottled Drinking Water Production Line details

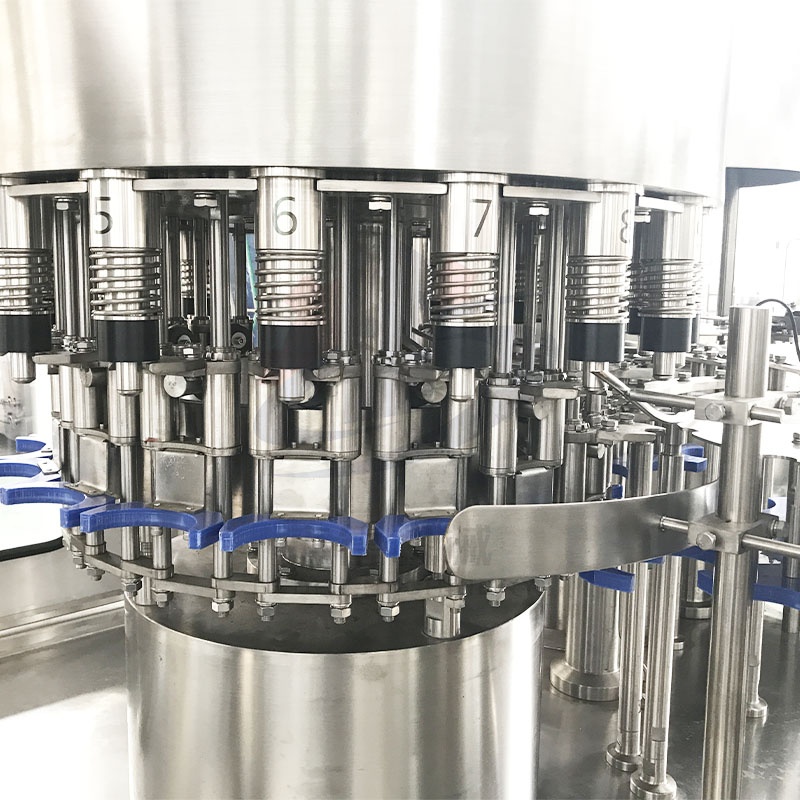

Filling Part
-The bottle entering the filling machine is held by the bottleneck tray. The filling valve drops and rises under the action of the cam through the valve lifting mechanism.
-The filling is filled by gravity method. The filling valve drops to contact the bottle mouth and opens the filling process.
-After the filling, the filling valve rises and leaves the bottle mouth, and the bottle enters the capping machine through the bottleneck transition wheel.

A to Z Bottle Filling Machinery Bottle Water Manufacturing Machinery Bottled Drinking Water Production Line details

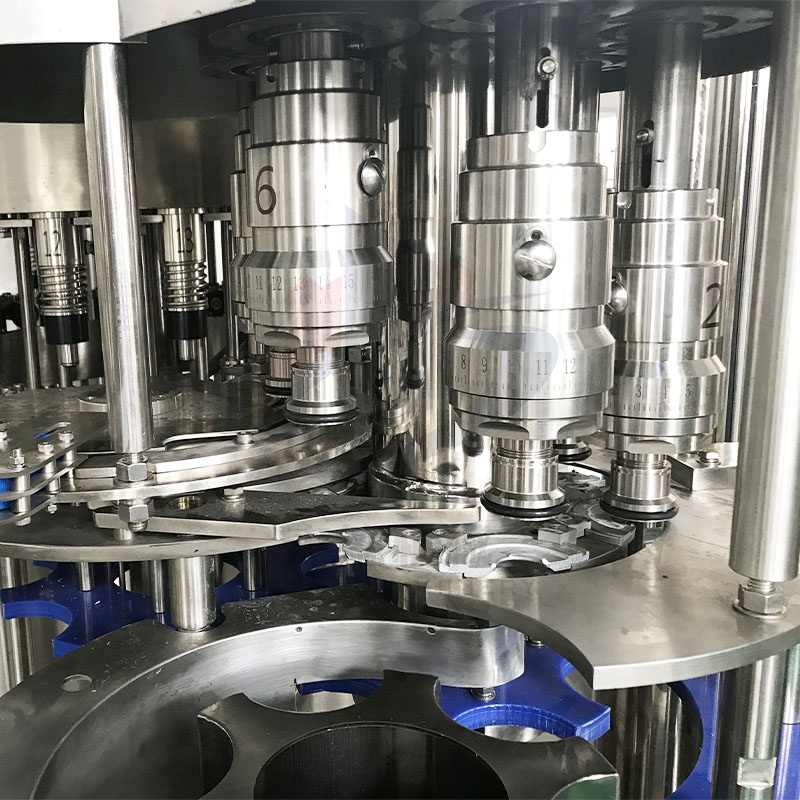

Capping Part
-The single machine with the highest accuracy in the three-in-one machine, the stop knife on the rotary cover machine stuck the bottleneck part, keep the bottle upright and prevent rotation.
-The cap head keeps rotates and rotates on the cap machine, and realizes the cover, cover, spin cover and cover off under the action of the cam to complete the whole sealing process.
-The finished bottle is transmitted from the capping machine to the delivery chain through the delivery wheel, and the three bottle is transmitted by the delivery chain.
Technical Parameters
Mold
CGF8-8-3
CGF14-12-5
CGF16-16-6
CGF18-18-6
CGF24-24-8
CGF32-32-10
CGF40-40-12
CGF50-50-15
CGF60-60-15








Production capacity(B/H)
2000-3000
3000-3500
3500-5000
5000-7000
7000-12000
12000-15000
15000-20000
20000-24000
24000-30000








Suitable bottle shape
                                                        Circular or Square








Bottle diameter(mm)
Φ50-Φ95








Washing
Aseptic Water








Total power
2.5
3
3.5
4
5.5
7.5
11
15
20








Weight (kg)
1800
2200
2800
3000
4500
6000
9000
15000
18000








Overall dimensions(mm)
1800*1200
2050*1550
2400*1750
2550*1850
3000*2150
4200*2700
4700*3200
6500*3350
7200*3650
